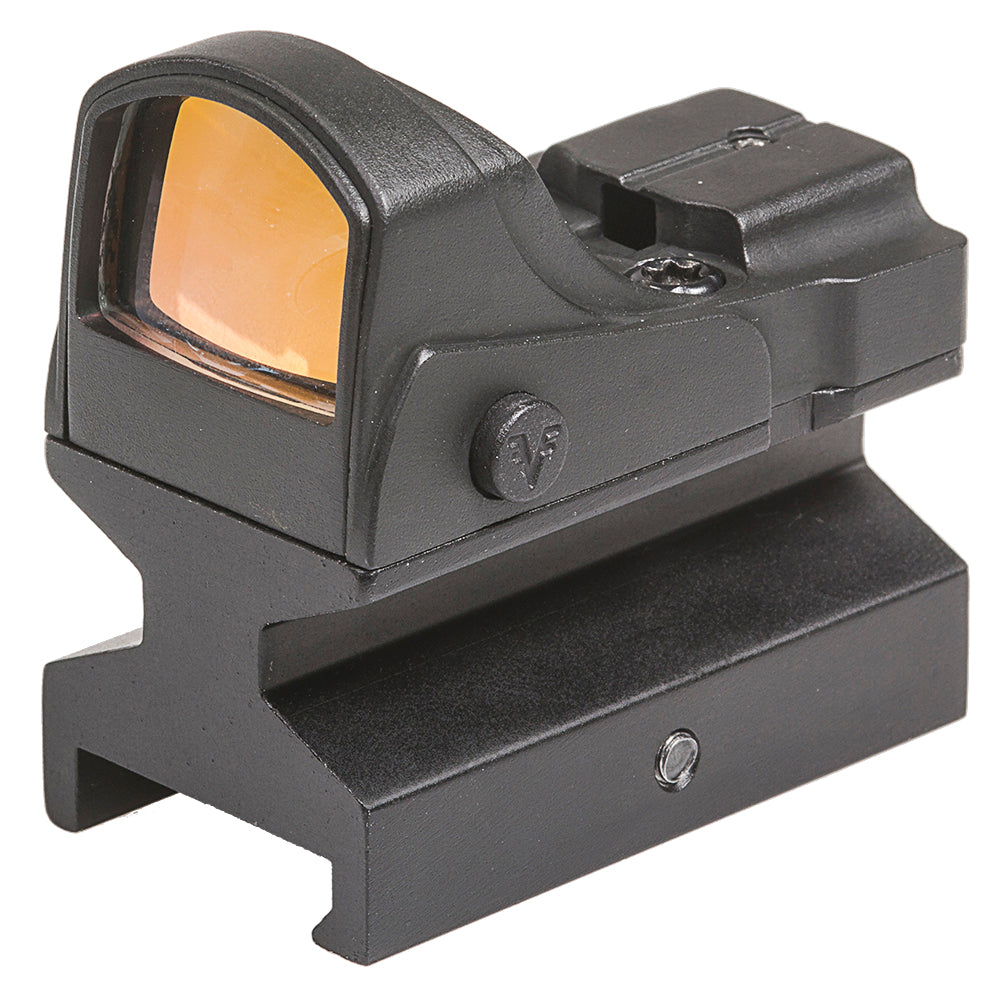

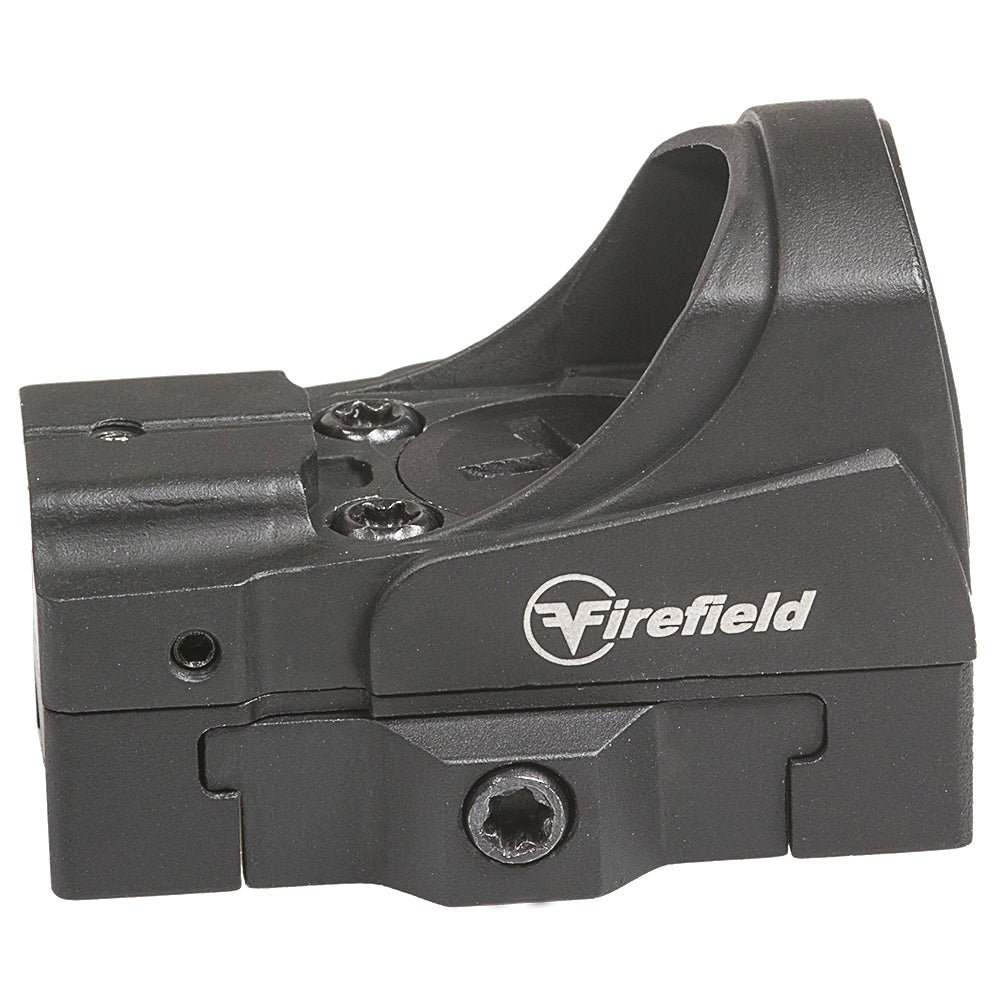

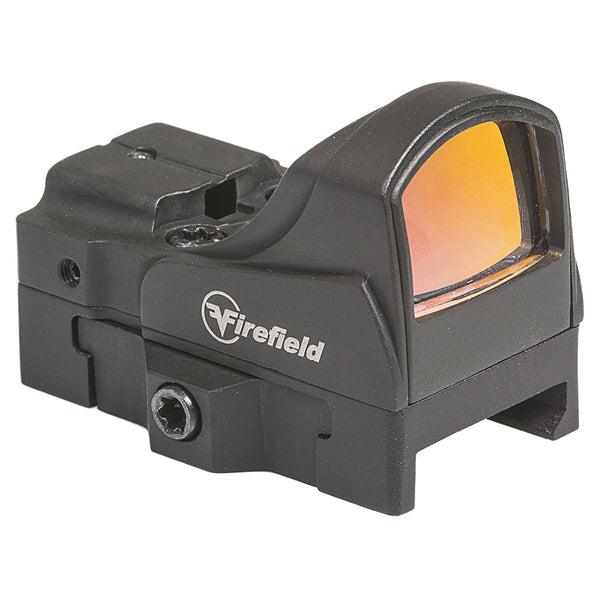

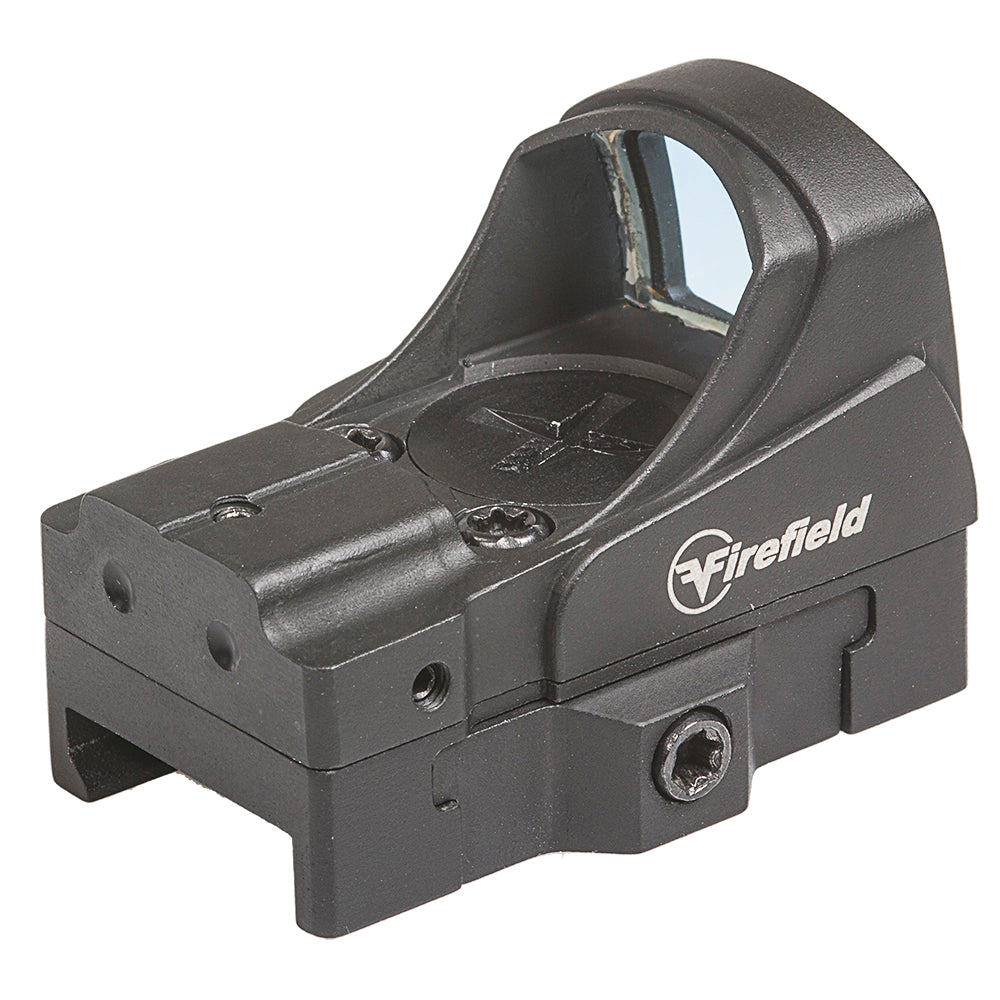

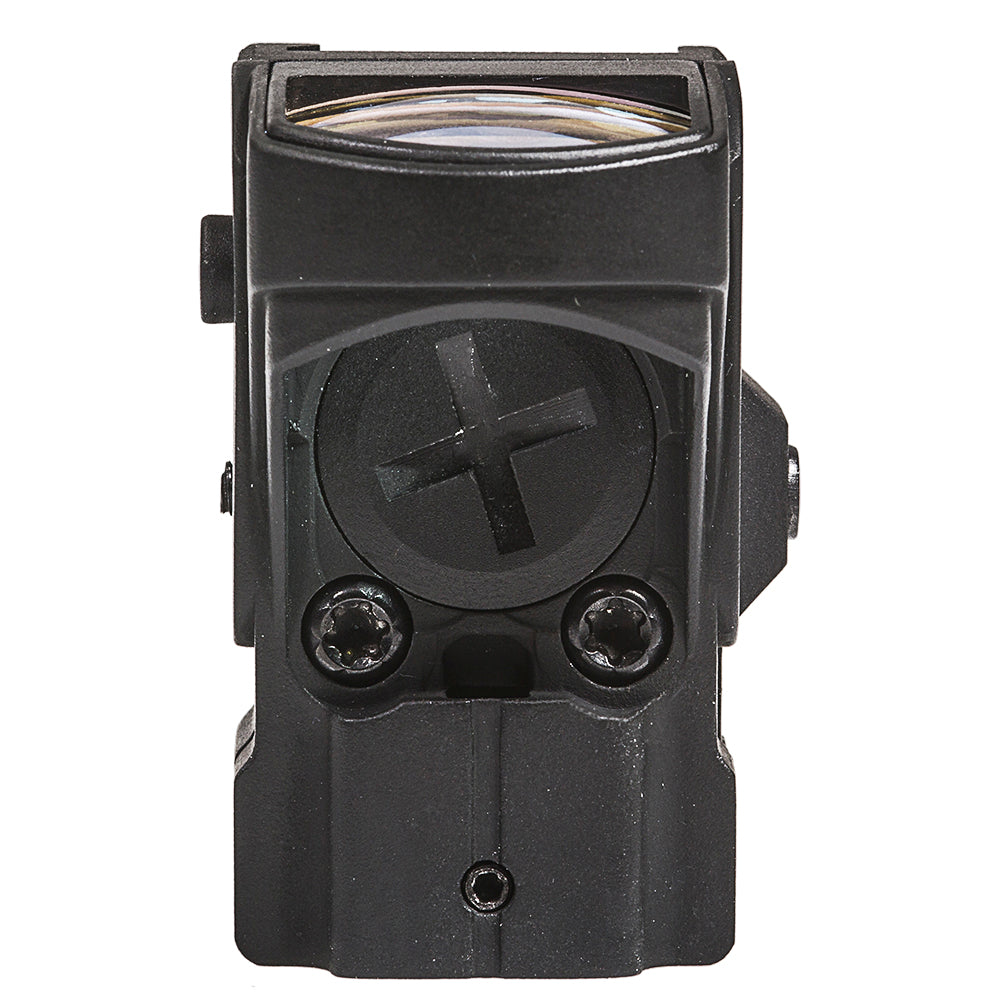

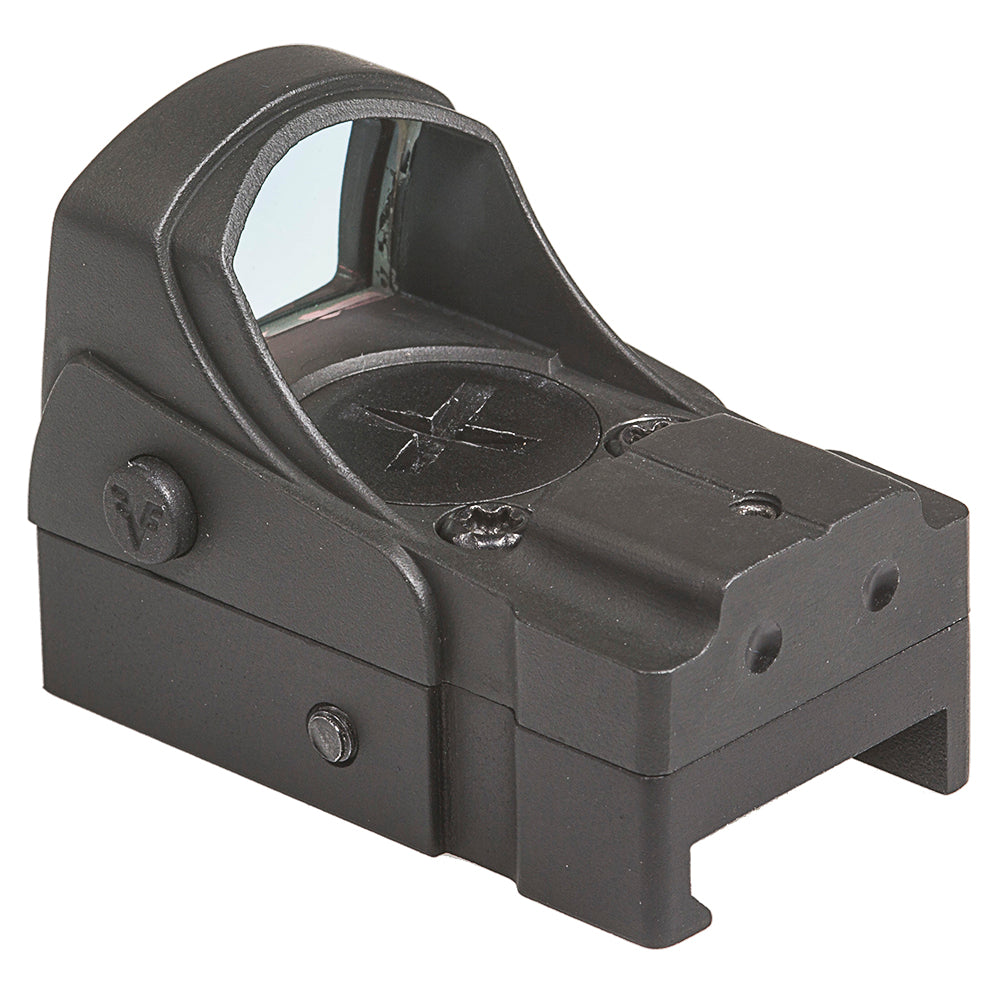

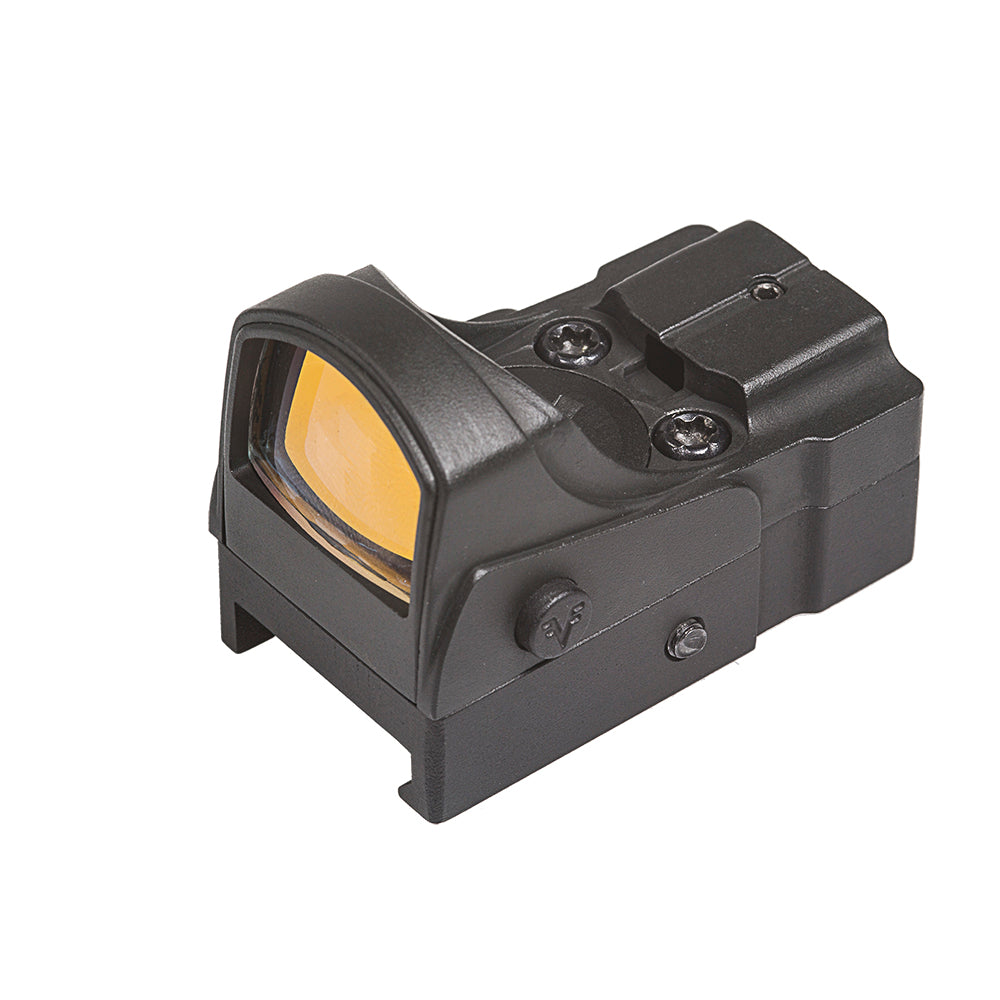

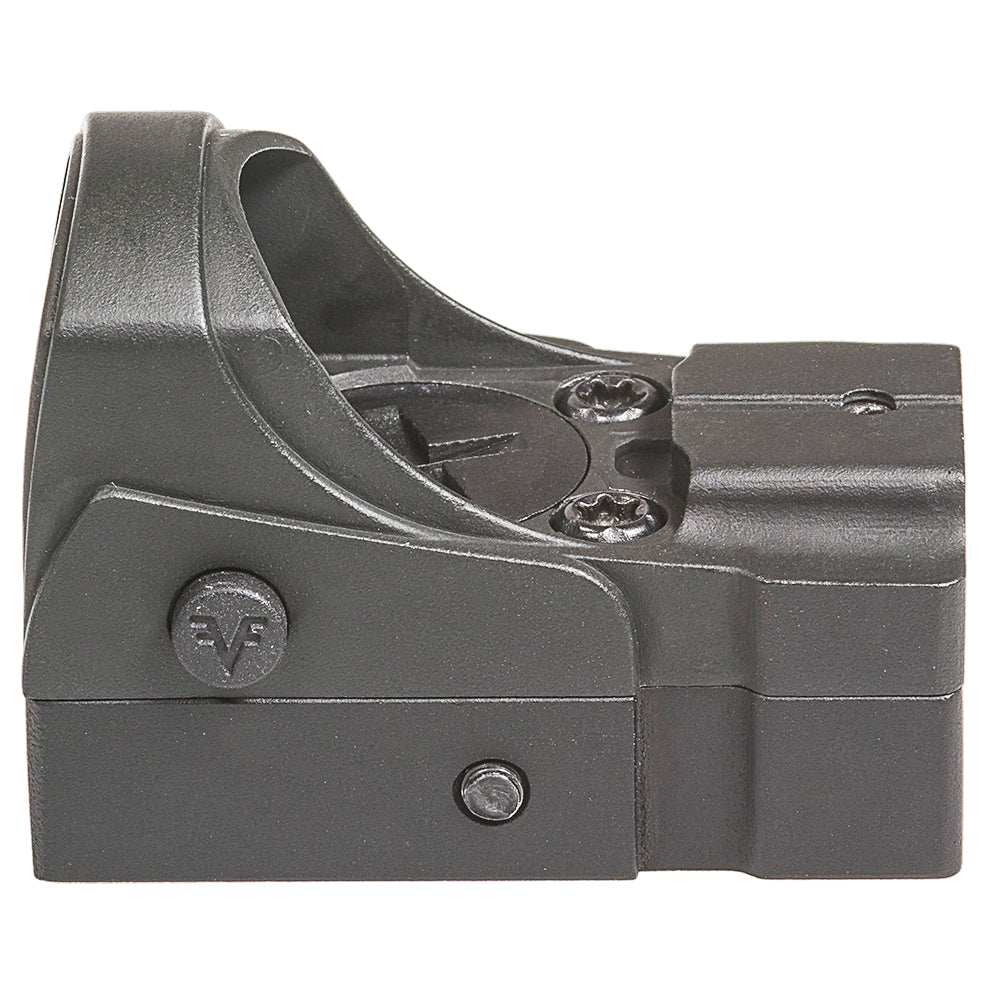

Impact Mini Reflex Sight w/ 45 degree mount

SKU# FF26021K

  • Sales Price:   $59.97
  • Regular price $68.97

Built legion-strong and combat-ready, the Firefield Impact Mini Reflex Sight Kit packs big red-dot performance into a small, ruggedly reliable optic complete with an illuminated 5-MOA red-dot reticle featuring 5 brightness settings. Perfect for ultra-fast target acquisition in close quarters, this mission-driven shockproof sight boasts advanced scratch-resistant, anti-reflective AR-red coated glass, infinite eye relief with 50-yd parallax setting and a crystal clear field of view. IP55 weatherproof protection and a 6061-T6 aircraft-grade aluminum housing keep your sight protected, even in harsh environments. The Firefield Impact Mini Reflex Sight mounts easily on a Weaver and picatinny rails and runs up to 40 hrs. on a CR1632 battery. This reflex sight kit includes low profile, co-witness and 45° mounts, a cover, CR1632 battery and adjustment tools.

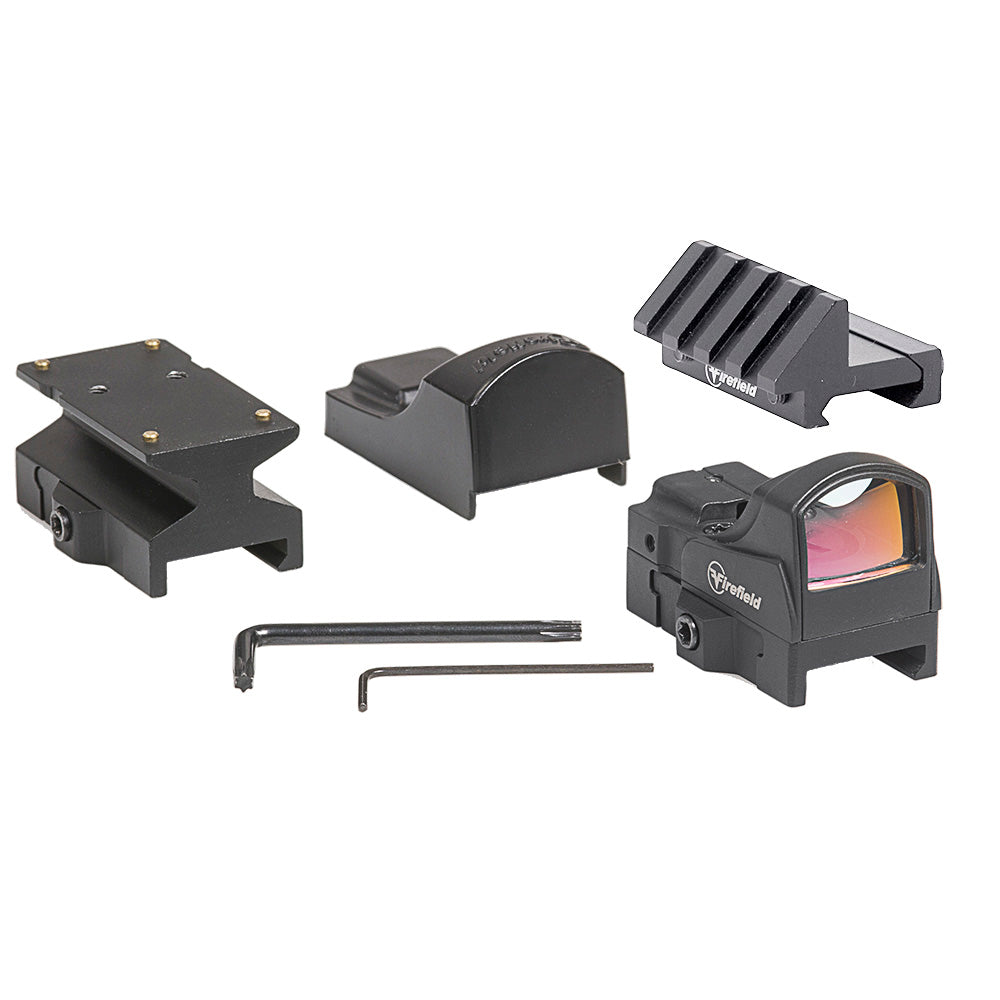

Included in Package

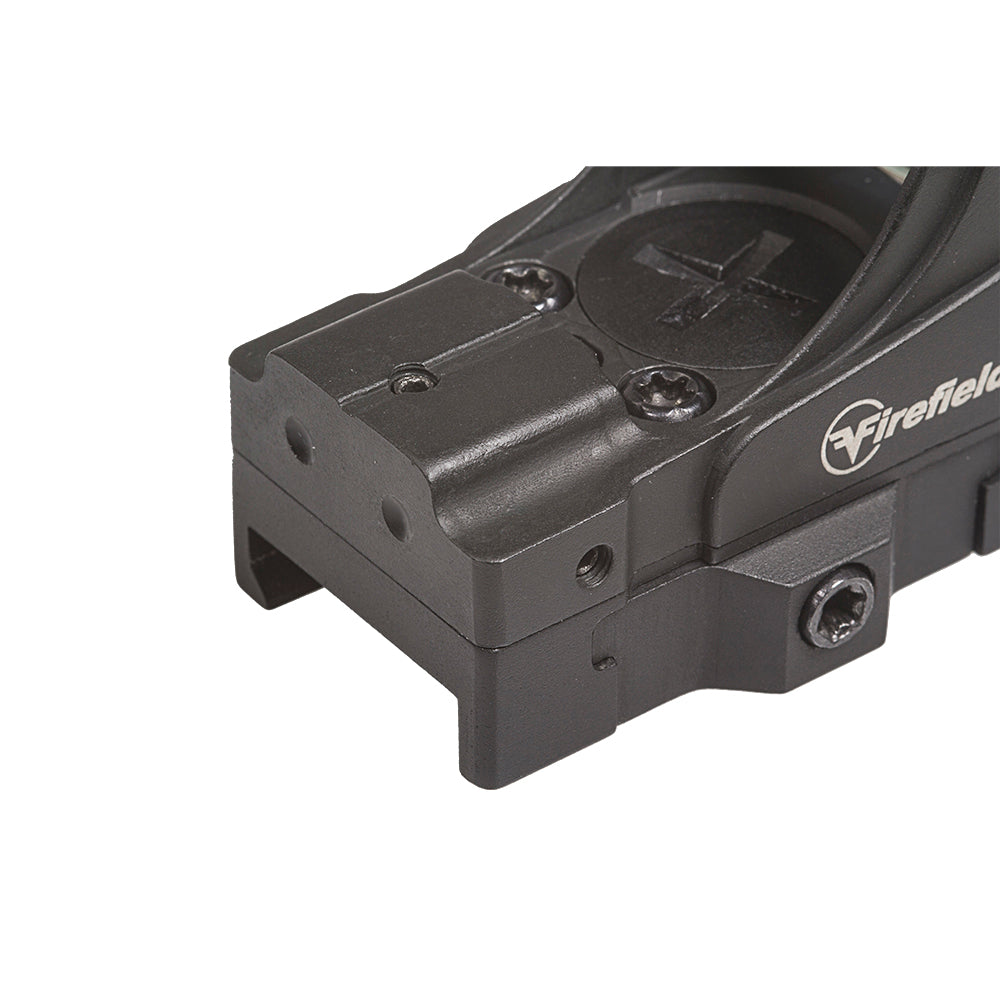

  • Low profile weapon mount

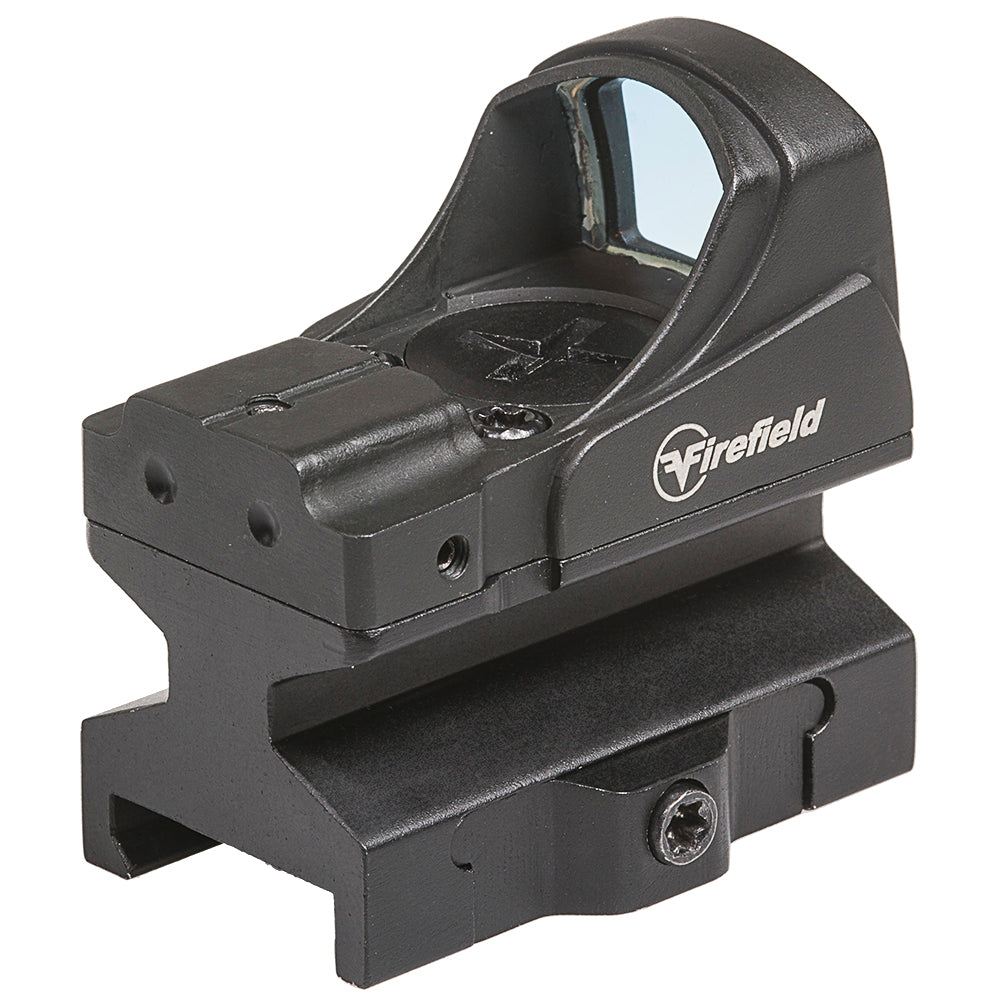

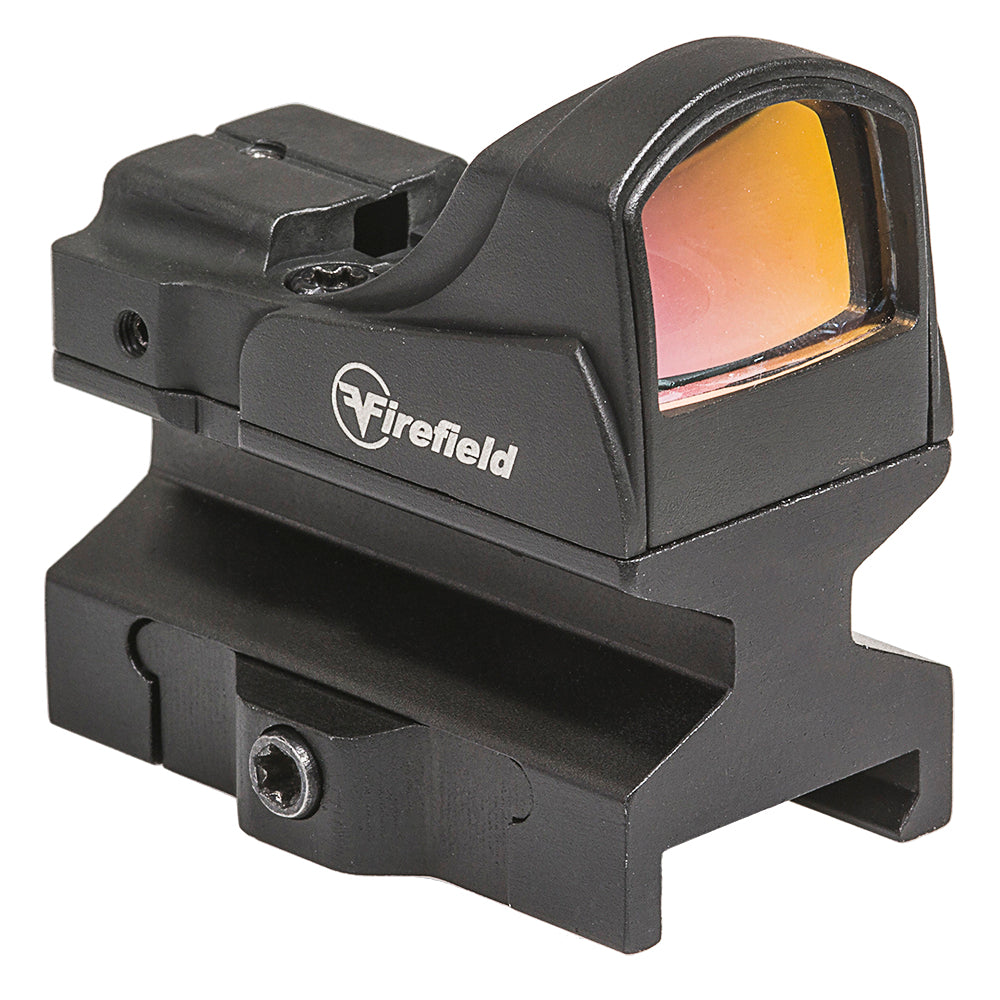

  • Co-witness weapon mount
  • 45 degree mount
  • Cover
  • Tools
  • Battery

Batteries Used

  • Type: CR1632
  • Quantity: 1

Product Downloads


  • Rugged, mission-ready reflex sight
  • 5 MOA reticle
  • Illuminated reticle
  • 5 brightness settings
  • Digital switch
  • IP55 weatherproof and shockproof
  • Compact, lightweight design
  • Includes a 45° mount



EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Reticle 5 MOA Dot
Reticle, Color Red
Illuminated (yes/no) Yes
Setting, Brightness 1 - 5
Magnification 1x
Objective overall dimension (mm) 16 x 21 mm
Eye Relief Infinite
Elevation Adjustment 120 MOA
Windage Adjustment 120 MOA
Adjustment Value Continuous
Parallax Setting 50 yards
Finish/Color Black Anodized
Body Material Aluminum
Maximum Recoil 800 G
IP Rating (waterproof) IP55
Nitrogen Filled No
Shockproof Yes
Fog Proof No
Lens Coating AR Red
Mount Type Weaver / Picatinny
Battery Type CR1632
Battery Life 40 (On High) - 200 (On Low) Hours
Length 1.9 inches
Length 49 mm
Width 1 inch
Width 29 mm
Height 1 inch
Height 25 mm
Weight 1 oz
