SKU: FF34011

AR 30mm Fixed Mount

Vendor Firefield.com
Regular price $49.97
Sale price $49.97 Regular price $60.00
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Description

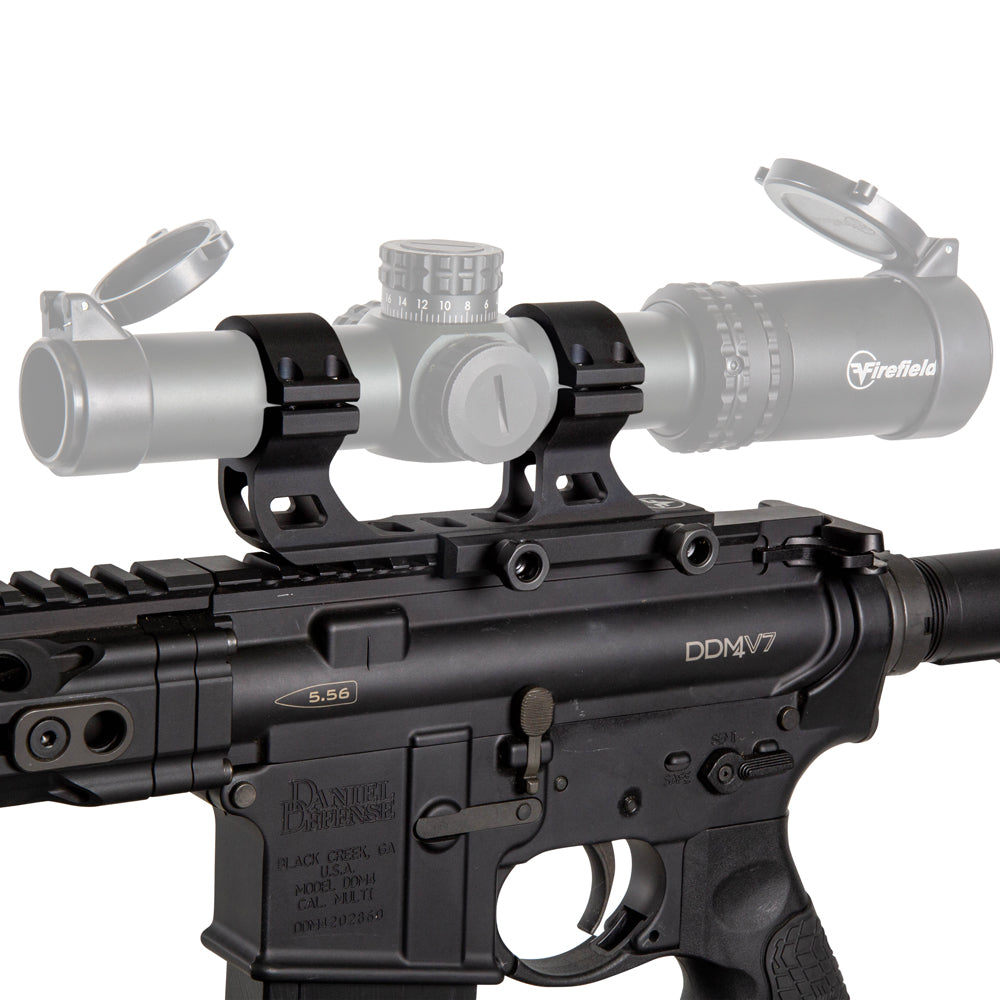

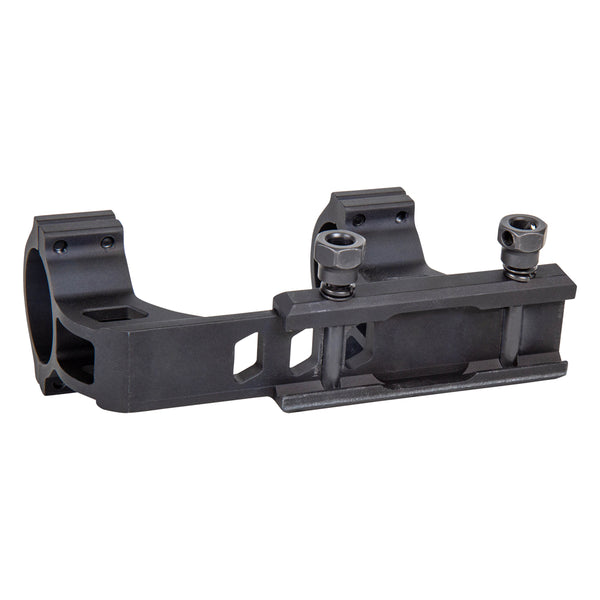

The Firefield 30mm fixed mount is a cantilever mount constructed of durable 6061-T6 aluminum. As a cantilever mount, this unit is designed to be used with rifles with high recoil cartridges, since they provide extra clearance between the shooter's eye and the rear of the scope, allowing for a comfortable and safe eye relief distance. By extending the scope forward over the rifle's action, the Firefield 30mm fixed mount may help shooters achieve better balance and a more natural shooting position. This is good for scopes with large objective lenses.

Included in Package

  • Hex key

    Features

    • Made from durable 6061-T6 aluminum
    • Matte black, no reflective finish
    • 47mm/1.85in forward offset
    • Fixed mount design
    • Fit 30mm riflescope tubes

    EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

    Specifications

    Mount type Picatinny
    Ring diameter 30mm
    Material Aluminum 6061-T6
    Centerline height (in/mm) 1.5in / 38.1mm
    Torque spec for mount hex nut (in-lbs) 30 - 35 in - lbs
    Torque spec for torx scope rings (in-lbs) 16 - 18 in - lbs
    Dimensions (in/mm) 5.132x2.034x2.515in / 130.34x51.66x63.87mmn
    Weight, (oz/g) 4.9oz / 139g
